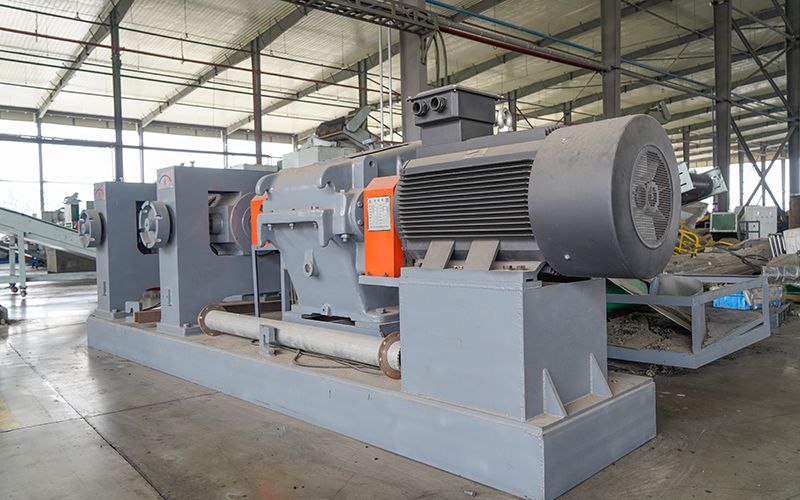

Rubber crushing mill can crush steel wire tyre chips (50mm×50mm) into rubber powder of 16 mesh to 40 mesh, and crush steel wire tyre chips (80mm×80mm) into rubber powder of 20 mesh to 40 mesh. At the same time, it separates the steel wire, ensuring that the rubber content in the steel wire is less than 0.5%. With a production capacity of 1 ton per hour, the rubber powder has a metal content of ≤0.06%. This rubber cutting mill comes with a durable and cost-effective tyre shredding system.
| Helical Roll | 710×1000mm (diameter × length) |
| Straight Tooth Roll | 610×1000mm (diameter × length) |
| Line Speed of Helical Roll | 62.17m/min |
| Rotation Speed of Helical Roll | 28.88r/min |
| Line Speed of Straight Tooth Roll | 44.36m/min |
| Rotation Speed of Straight Tooth Roll | 23.23r/min |
| Roll Speed Ratio | 1.4:1 |
| Reducer Speed Ratio | 35.3:1 |
| Capacity (22 mesh rubber powder) | 1200-1400kg |
| Motor Power | Y2-355m2-6--250kW--280kW |
| Dimensions | 6200×2260×1700mm |
| Rubber Baffle Method | Steel panel |
| Bearings | Thrust bearings and rolling mill bearings |
| Cooling Method | Water cooling (rotary joint) |
| Frame & Roll Material /Weight | Cast steel/30tons |
The rubber crushing mill is mainly used for the crushing of steel wire tyre chips and reclaimed rubber into rubber powder.
